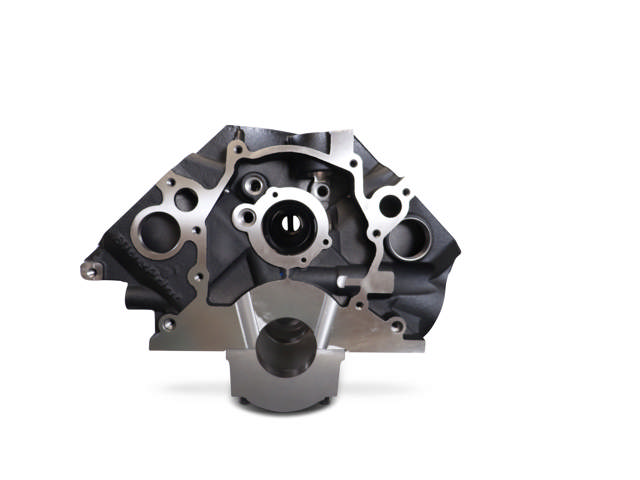

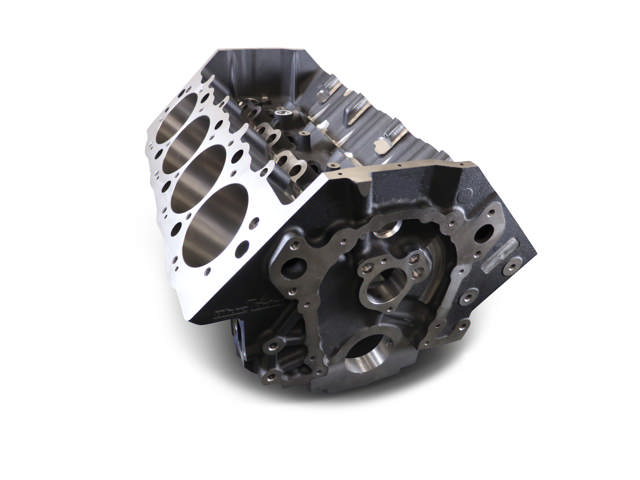

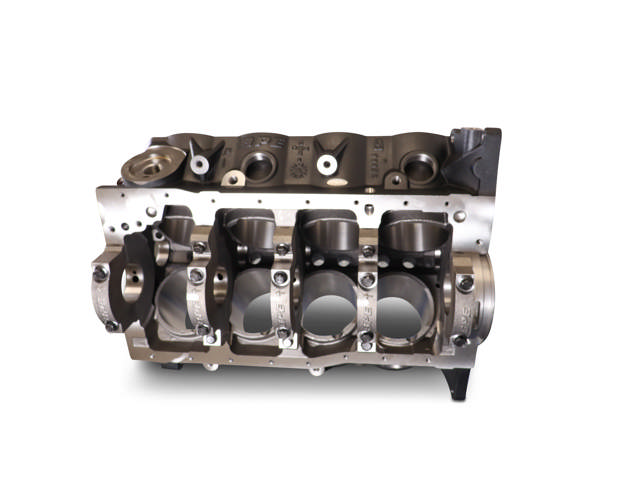

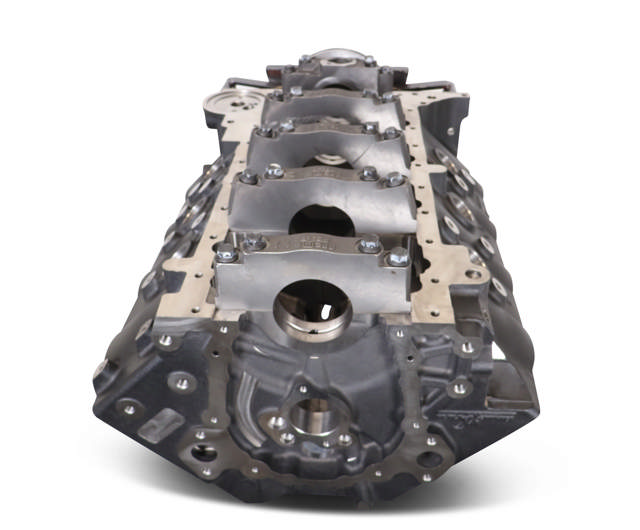

When you’re building big power, you need a block that’s ready to carry the load—and this BBC-compatible foundation is engineered to take you all the way to a massive 598 cubic inches. Designed for serious street, strip, and marine performance, this block delivers the strength, rigidity, and machining precision needed for high-horsepower combinations. Thick cylinder walls, robust main webbing, and smartly engineered oiling and cooling pathways give builders the confidence to push displacement and power further without sacrificing reliability. Whether you’re crafting a torque-heavy cruiser or a high-rpm bruiser, this block is the rock-solid starting point your big-inch Chevy build deserves.
- Cylinder Bore (Rough): 4.495" to 4.497"
- Cylinder Bore (Max): 4.630"
- Cam Bearings: Durabond GM-12
- Cam Bearing Bore ID: 2.120"+/- .001"
- Camshaft Position: OEM
- Cam Drive / Timing Set: OEM / Double Roller
- Cam Retaining Plate: OEM
- Cubic Inch (Max): 598
- Cylinder Wall Thickness: .310" Nominal @ Max Bore
- Cylinder Skirt Length: 6.300" Nominal
- Deck Height: 9.800" +.005" / -.000"
- Deck Thickness: .710" Nominal
- Freeze / Core Plugs: 1-5/8" x 8
- Head Bolt / Stud Threads: 7/16-14 UNC
- Lifter Bores: .8437" +/- .0003"
- Lifter Retainer (If not using tie car lifters): OEM W/Roller Provisions
- Main Bearing Bore (Line Honed): 2.937" - 2.938"
- Main Bearing Caps: Billet Steel
- Main Cap Bolts: 1/2"-13
- Main Fastener Tensile Strength: 180,000 to 210,000 PSI
- P1 Main Stud Kit P/N: TBD
- ARP Main Stud Kit P/N: TBD
- Material (Block): EN-GJL-250 Iron
- Oil System: Priority Main
- Oil Pump: OEM
- Oil Filter: OEM
- Oil Pan: OEM (GEN IV)
- Rear Main Seal: 2 piece - Seal (OEM GEN IV)
- Starter: OEM
- Stroke (Max): 4.750"
- Timing Cover: OEM GEN IV
- Approx. Weight with Main Caps: 240-260lbs
