SKU: H8002K

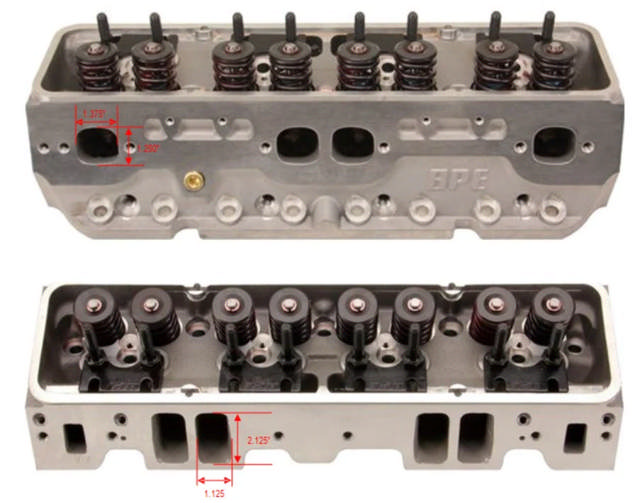

SB Chevy Aluminum Cylinder Head - 195cc - Assembled (Sold as Pair)
$1,599.00
Secure Payments
Financing available at checkout with Affirm
- Description
- Parts Specs
Get big power on a small budget with BluePrint Muscle Series cylinder heads! These lightweight aluminum heads bolt up to your small block Chevy and feature 195cc intake/75cc exhaust runners, 64cc combustion chambers, and 2.02" intake/1.60" exhaust valves. They're fully assembled with valve springs, retainers, locks, guide plates, studs, and seals. Manufacturers part number H8002K
- Maximum Output for Less Money!
- Designed and Produced by BluePrint Engines
- Fully Assembled with Heavy Duty Components
- Backed by Our Full 12-Month Limited Warranty
WARNING: Cancer and Reproductive Harm
Intake:
- Intake Runner Volume (cc): 195cc
- Intake Port Location: Standard
- Intake Port Shape: Rectangular
- Intake Valves Included: Yes
- Intake Valve Diameter (in): 2.02 in.
- CFM Port Flow Average @ 28"
- .100" – 83
- .200" – 150
- .300" – 190
- .400" – 223
- .500" – 252
- .600" - 245
Exhaust:
- Runner Volume (cc): 75cc
- Exhaust Valve Diameter (in): 1.600 in.
- Exhaust Valves Included: Yes
- Port Shape: Square

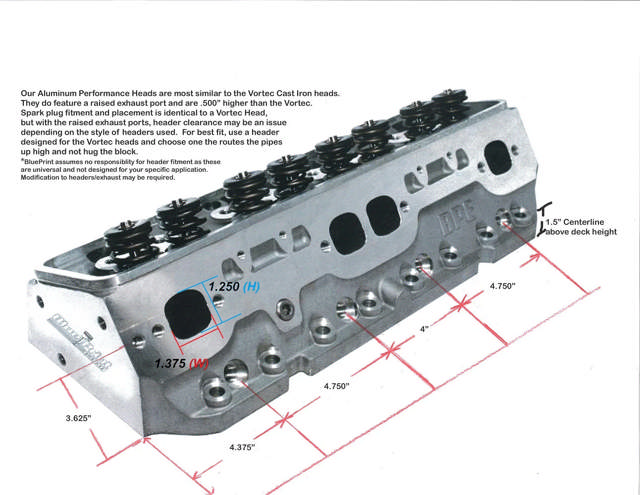

- Exhaust Port Location: Raised .500 in.
- CFM Port Flow Average @ 28"
- .100" – 83
- .200" – 130
- .300" – 166
- .400" – 193
- .500" – 207
- .600" - 213
Combustion Chamber:
- Combustion Chamber Volume (cc): 64cc
- CNC-Machined Combustion Chamber: No
Valve Specs:
- Maximum Valve Lift (in): .575 in.
- Intake Valve Angle: 23 Degree
- Exhaust Valve Angle: 23 Degree
- Valve Guides Included: Yes
- Valve Guide Material: Manganese Bronze
- Valve Seats Machined: Yes
- Valve Seat Machine Style: 3-Angle
- Valve Seat Material: Chrome Nickle
- Valve Stem Seals Included: Yes
- Valve Stem Seal Style: Viton® Fluoroelastomer
Springs:
- Valve Springs Included: Yes
- Spring Pressure Open: 295-305 @ 1.225
- Spring Pressure Closed: 115-125 @ 1.800
- Outside Diameter of Outer Spring (in): 1.437 in.
- Damper Spring Included: Yes
- Number of Springs Per Valve: Dual
- Retainers Included: Yes
- Retainer Material: Chromoly Steel
- Locks Included: Yes
- Lock Style: 7 Degree
Rocker Arms:
- Rocker Arm Studs Included: Yes
- Rocker Arm Nut Thread Size: 7/16 in.
- Rocker Arms Included: No
- Rocker Arm Nut Included: No
Guide Plate:
- Guide Plate Included: Yes
- Guide Plates Pushrods: 5/16 in.
Misc:
- Spark Plug Style: Straight – .750 Reach Gasket
- Spark Plug Position: Vortec Plug Placement
- Valve Cover Mounting Style: Accepts Perimeter & Center Bolt
- Valve Cover Mounting Style: Perimeter Bolt
- Accessory Bolt Holes Drilled: Yes 3/8-16 in.
- Camshaft Style: Hydraulic Roller
- Steam Holes Drilled: No
- Oiling Style: Through Pushrod
- Machined for O-Ring: No
- Heat Crossover: No
Qty:
- Sold As a Pair
Warranty:
- Backed by our full 12-month limited warranty!
